Red Cable End Fittings Push - Pull Control Head For Engine Shut Down

Name: Red Cable End Fittings Push Pull Control Head For Engine Shut Down
Brand: PHIDIX
Price: 1 USD

Buy cheap Red Cable End Fittings Push - Pull Control Head For Engine Shut Down product

Brand Name : PHIDIX

Model Number : Knobs / Handles

Certification : IATF16949

Place of Origin : China

MOQ : 10 Piece/Pieces

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 888 Piece/Pieces per Month

Delivery Time : 7-40 work days

Packaging Details : carton or wood case

Name : Push - Pull Control Head

Colour : Red

Material : Plated carbon steel corrosion-proof control heads

Certificate : ISO9001

Applications : Engine shut down, engine choke, latch operation, valve operation,etc.

Load : 50 lb. maximum

Travel : 3” maximum

Feature : Flexible dust seal protects internal release mechanism

Contact Now

Push-Pull Control Head Non-Lock Control Heads

【 Product Description 】

These panel or bracket mounted units are intended for light to moderate loads. They are cost effective solutions to mechanically connecting a manual input source to a remote output.

【 Common Applications 】

Engine shut down, engine choke, latch operation, valve operation

• Especially effective when space is limited or rod linkage and bell cranks are not suitable choices

• Various T-handles/knobs with or without functional identifications, as well as output end configurations are available.

【Technical 】

• Load: 50 lb. maximum

• Travel: 3” maximum

• Threaded mount

【 Material 】

• Plated carbon steel corrosion-proof control heads

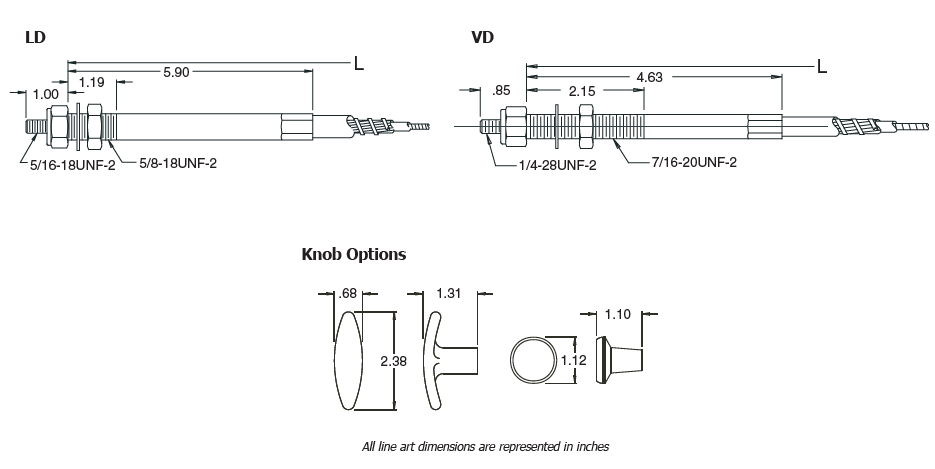

【 Drawing 】

Red Cable End Fittings Push - Pull Control Head For Engine Shut Down

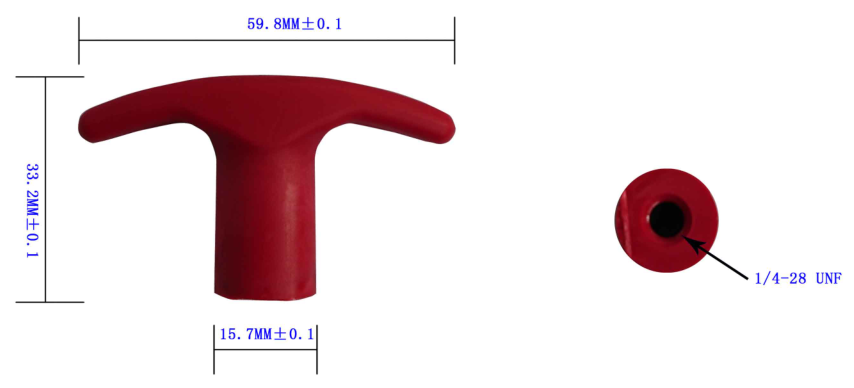

【 Structural Dawing 】

Red Cable End Fittings Push - Pull Control Head For Engine Shut Down

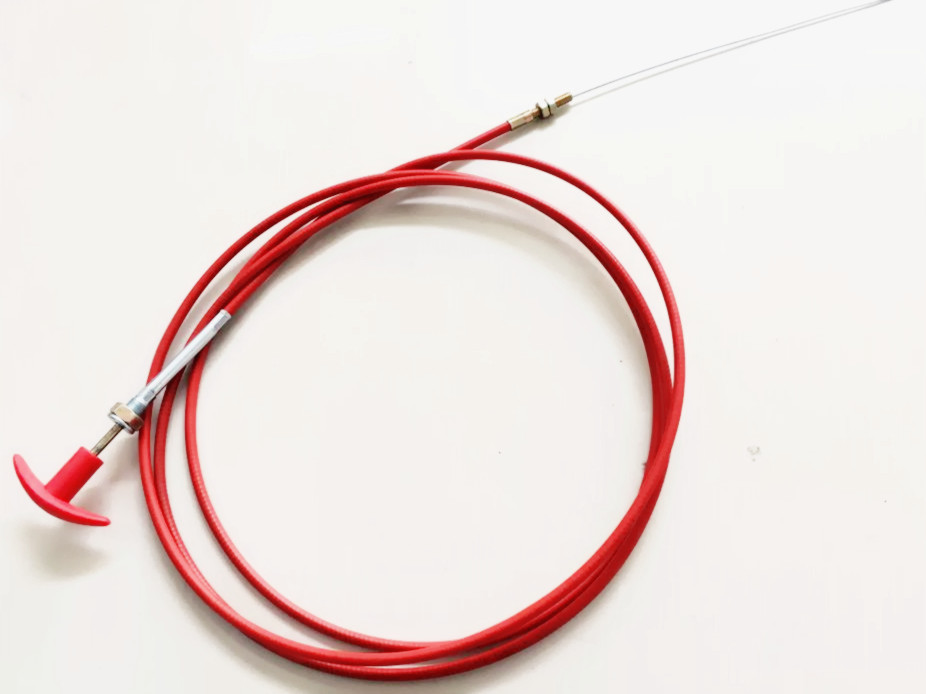

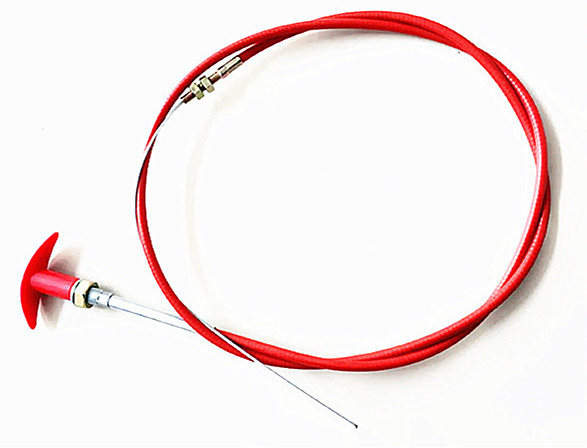

【 Real Picture 】

Red Cable End Fittings Push - Pull Control Head For Engine Shut Down
