Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly

  • 1
  • 2

Brand Name : Phidix

Model Number : CA-WT-PO-3000

Certification : IATF16949

Place of Origin : Shang Hai

MOQ : 10 piece

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T

Supply Ability : 800 pcs per month

Delivery Time : 7 - 40 work days

Packaging Details : carton or wood case

Series : pull only Industrial Control Cable Assembly

Material : Nylon Covered Innermember , Plastic Covered Conduit

Model : CA235-A-L / CA236-A-L,CA270-XXX / CA271-A-L ,CA312-A-L,A183-XXX

Travel : 2"- 6"

Installed Bend Radius : down to 5"

Transmission direction : pull only unidirectional

Working Load : 210 – 400 lbs

Operating Temperature : –40°C to +120°C

Contact Now

Custom Pull-Only Clutch Cable Assemblies Built to Your Specs

Why Off-the-Shelf Clutch Cables Often Fall Short

In many OEM or retrofit systems, pre-fabricated clutch cables don't align with the unique layout, stroke, or durability requirements of real-world mechanical environments.
Maybe the routing requires tighter bends.
Maybe the stroke needs millimeter accuracy.
Maybe the vibration or heat resistance of the cable just doesn’t cut it.
That’s where Phidix’s custom pull-only clutch cable program makes a difference.

What “Custom-Engineered” Means at Phidix

Unlike generic cables, every Phidix engineered assembly is built on detailed technical coordination with your team.

Customizable Parameter What It Means for You
A & L Dimensions Exact conduit length and cable travel tailored to your system
Inner Core Options Steel strand size (1x19, 7x7), coating types (nylon, PTFE)
Conduit Variants Plastic jacket, stainless braid, HD options for severe duty
End Fittings Threaded rods, clevises, ball studs – brass, steel, stainless
Operating Envelope Designed for your temperature, load, vibration, or routing zone

Phidix doesn’t just cut and crimp—we engineer mechanical motion reliability.

Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly


Phidix doesn’t just cut and crimp—we engineer mechanical motion reliability.

Buyer Type Customization Focus Typical Use Case
OEM Engineering Fitment integration, system tuning Engineered vehicle platforms
Fleet Upfitters Retrofit bracket layouts, consistent stroke Bus & truck rebuild programs
Repair/Service Direct replacement with upgraded durability Heavy machinery clutch repairs
Exporters Matching uncommon vehicle specs across regions Replacing imports with local-manufactured equivalents

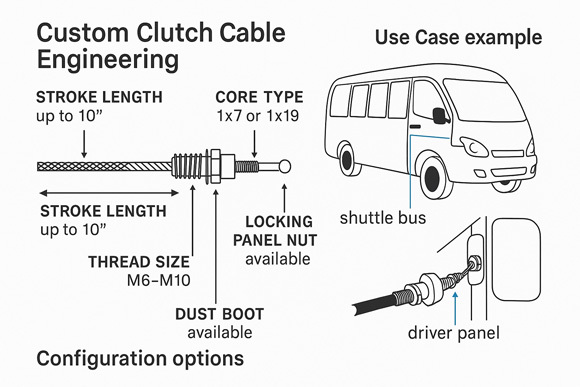

Example: Replacing a Clutch Cable on a Shuttle Bus

A shuttle bus operator approached Phidix with this requirement:
•  Needed a clutch cable with 3/8-24 threaded ends,
•  18.5" conduit length and 2.75" stroke,
•  Fit within a tight under-dash routing area,
•  Operate reliably at 90°C ambient temperature.
Phidix supplied a matched cable using:
•  Nylon-coated steel core
•  PP/HD plastic conduit
•  Threaded UNF rod ends
•  Double-sealed boots for dust ingress protection
Result: The system achieved lower pedal effort, zero slack, and a projected service life of over 100,000 cycles.
Flexible Universal Throttle Cable Pull - Only Clutch Cable Custom Engineered Assembly

Clutch Cable Engineering Fitment Guide

Element Description / Custom Range
Travel Stroke Typically 2"–6", precision matched to linkage geometry
Bend Radius As low as 4.5", using flexible multi-layer conduit
Mounting Hardware Panel nuts, lock grommets, anti-vibration spacers optional
Material Certs IATF16949-certified production and testing

Let’s Build It Together

Need a drawing-based proposal? Want to match a cable from another brand?

Phidix can help:

•  Match your current cable specs

•  Improve performance or reduce cost

•  Deliver fully assembled, tested cables on short lead time

Submit Your Cable Specs
